Audio XLR 3 Pin Male Female Plug Connector Electrical IP65 Waterproof

Name: Audio XLR 3 Pin Male Female Plug Connector Electrical IP65 Waterproof
Brand: SHANGWEN
Price: 1.51 USD

China Audio XLR 3 Pin Male Female Plug Connector Electrical IP65 Waterproof factory

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : 3 pin male plug

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 2 pieces

Price : $1.51/pieces 2-99 pieces

Type : XLR connector

Application : Power

Gender : Male

Industrial electronics : accessories

Feature : Waterproof IP65

Wire diameter range : 5-8mm

Contact Now

China Manufacture Outdoor Waterproof Male Female Plug 3 Pin 5 Pin Xlr Connector For Audio

Products Description

Waterproof XLR connector-3 pin male plug

The 3-pin male XLR connector plug offers a dependable and versatile solution for audio connections in professional audio setups. Its durable construction, balanced audio transmission, secure connection, and compatibility make it an essential component in the audio industry, ensuring high-quality and reliable audio signal transmission.

Durable Construction: The connector plug is built with high-quality materials, typically featuring a robust metal or high-grade plastic housing that ensures durability and longevity, even in demanding environments.

Balanced Audio Transmission: The 3-pin XLR connector plug supports balanced audio signals, allowing for efficient and reliable transmission with reduced noise and interference. It ensures high-quality audio reproduction.

Secure Connection: It incorporates a reliable locking mechanism that securely fastens the plug to the corresponding female socket, providing a stable and secure connection that prevents accidental disconnections during use.

Audio XLR 3 Pin Male Female Plug Connector Electrical IP65 Waterproof

Model:SW3XMT-F-B (Black)

SW3XMT-F(Silver)

☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm

3 pin male plug

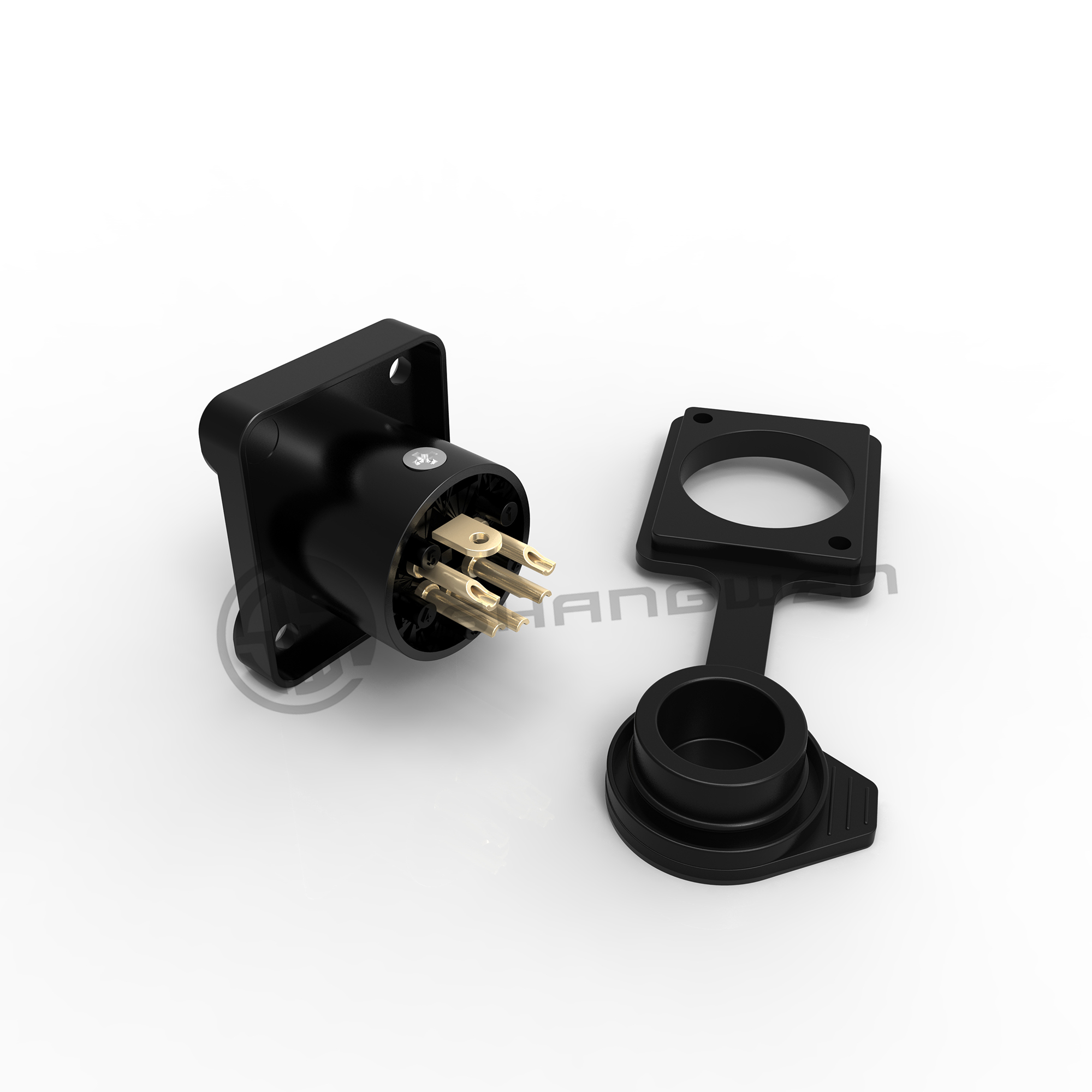

3 pin male socket

3 pin female plug

3 pin female socket

5 pin male plug

5 pin male socket

5 pin female plug

5 pin female socket

1.Product parameters

Connection Type	XLR
Gender	Male

2.Electrical parameters

Capacitance between contacts	≤4pF
Contact resistance	≤3mΩ
Dielectric strength	1.5kVdc
Insulation resistance	> 10GΩ (initial)
Rated current per contact	16A
Rated voltage	<50V

3.Mechanical parameters

Sign Cable O.D.	5-8mm
Insertion force	≤ 20N
Withdrawal force	≤ 20N
Service life	＞1000 mating cycles
Wire size	Max. 2.5 mm²
Wire size	Max. 14 AWG
Locking device	Latch lock

4.Material and environmental parameters

Boot	Polyurethan
Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 HB
Protection class	IP65
Temperature range	-30℃to +80℃

5.Size reference (unit /mm)

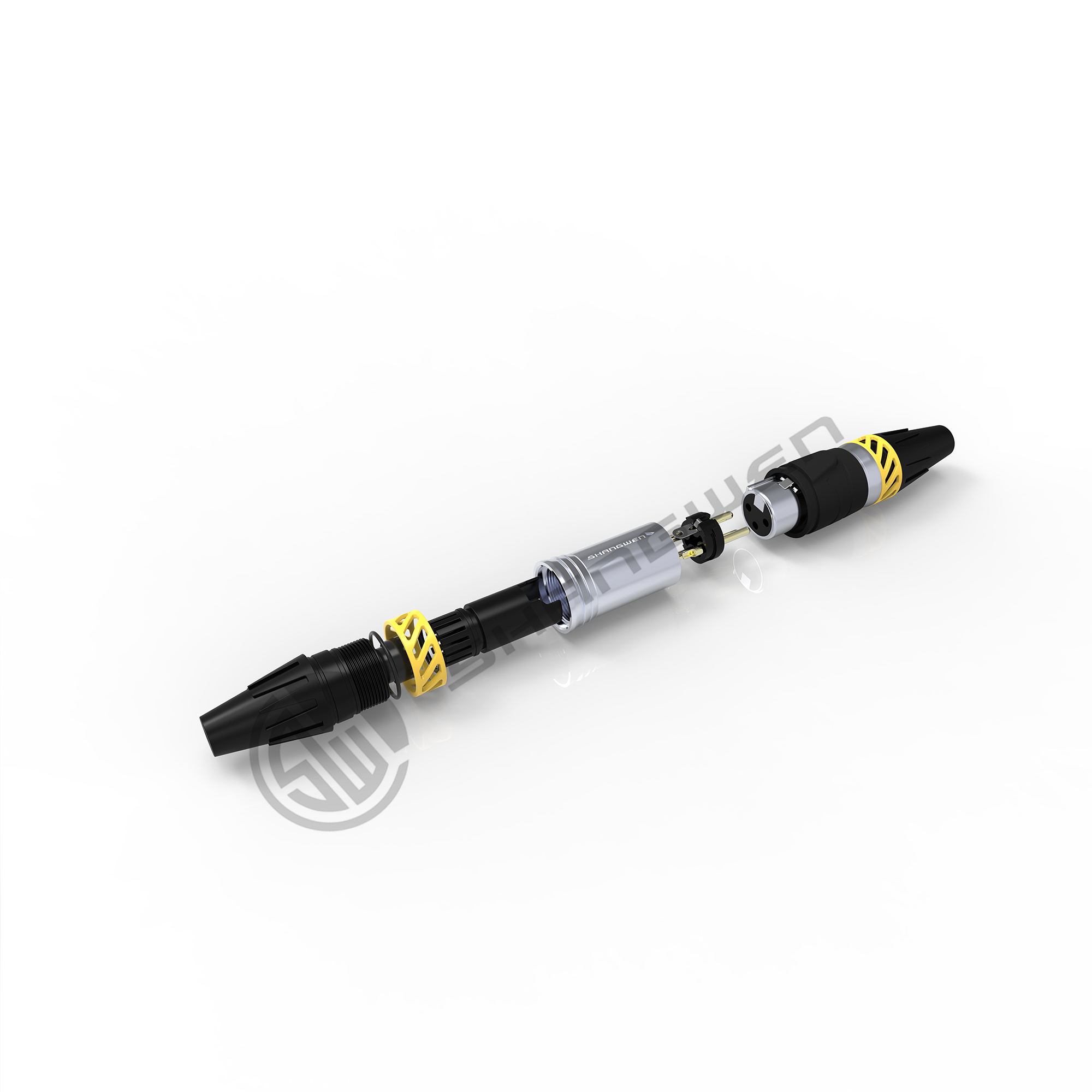

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
