Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor

Contact Material : Copper

Place of Origin : Guangdong, China

IP level : ip65

Brand Name : SHANGWEN

Model Number : SWF3X-2TFS-KN

Type : XLR connector

Application : Power

Gender : Male

Housing Material : zinc alloy

Industrial electronics : accessories

MOQ : 10 pieces

Price : CN¥10.80/pieces 10-99 pieces

Contact Now

Products Description

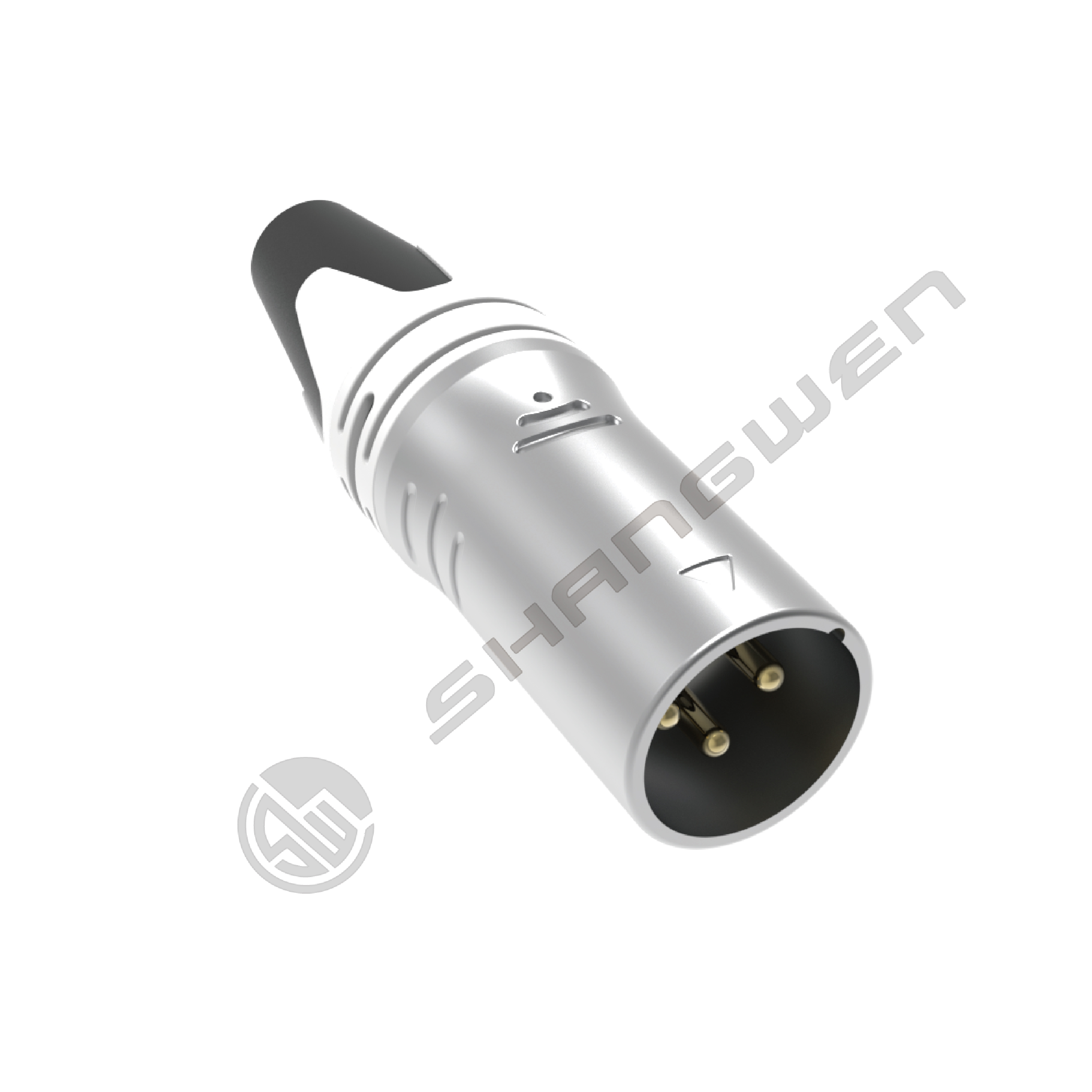

Waterproof XLR connector-3 pin male plug
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
Model：SWF3X-2TFS-KN
☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
3 pin female socket
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor

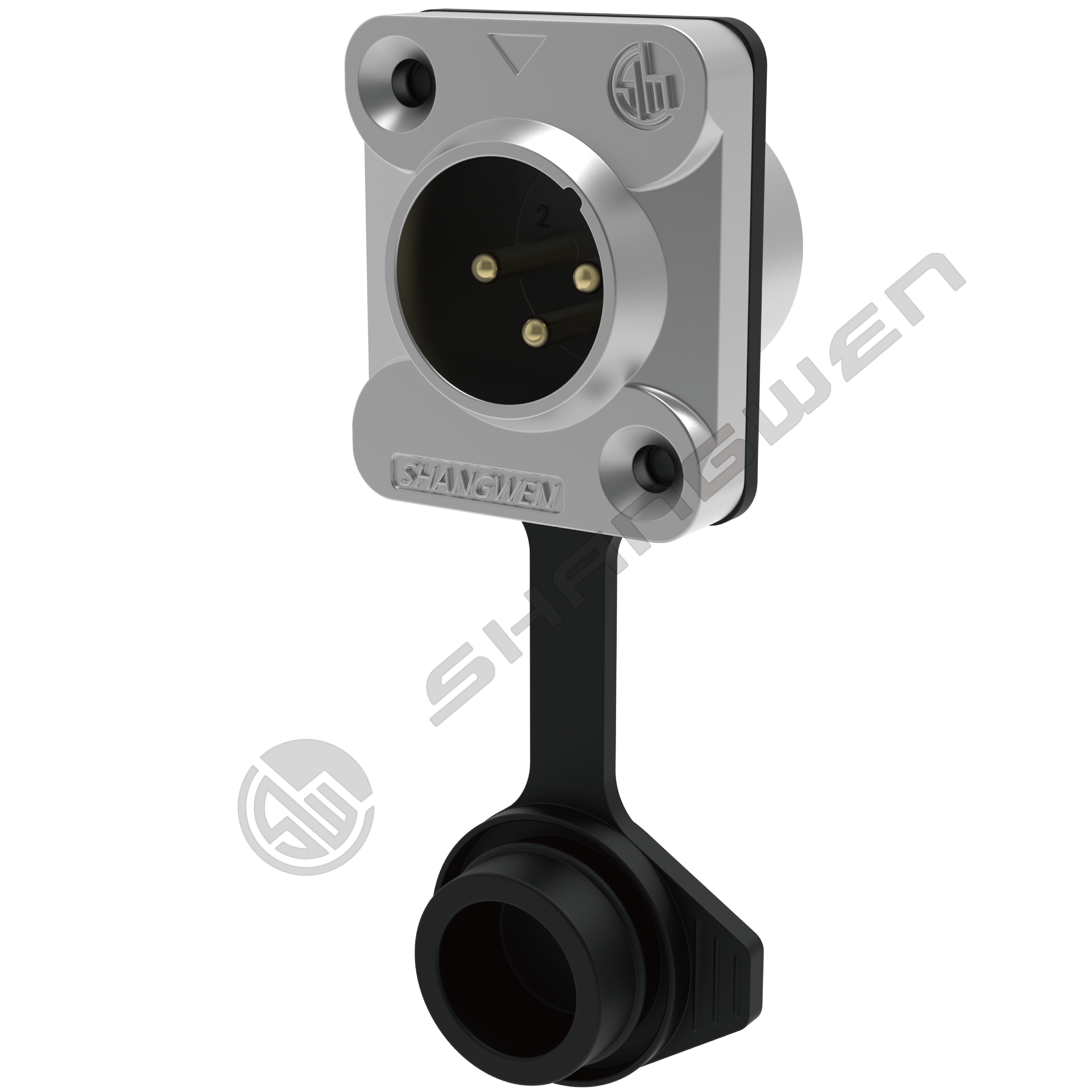

3 pin male socket
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
16A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
5-8mm
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Wire size
Max. 2.5 mm²
Wire size
Max. 14 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
Polyurethan
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
Application area
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
Company Information
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
Patent & Certification
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
Exhibition activities
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
Packaging reference
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
Payment and logistics
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
FAQ
Waterproof 3 Pin XLR Plug Female Socket Adapter IP65 DMX Panel Mount Audio Wire Connector Alloy Material Outdoor
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
