Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection

Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection

Place of Origin : Guangdong, China

IP level : IP40

Brand Name : SHANGWEN

Model Number : SWM7X-3TBN-KN

Type : XLR connector

Application : Audio & Video

Gender : Female

Industrial electronics : accessories

MOQ : 10 pieces

Price : CN¥7.65/pieces 10-99 pieces

Contact Now

Products Description

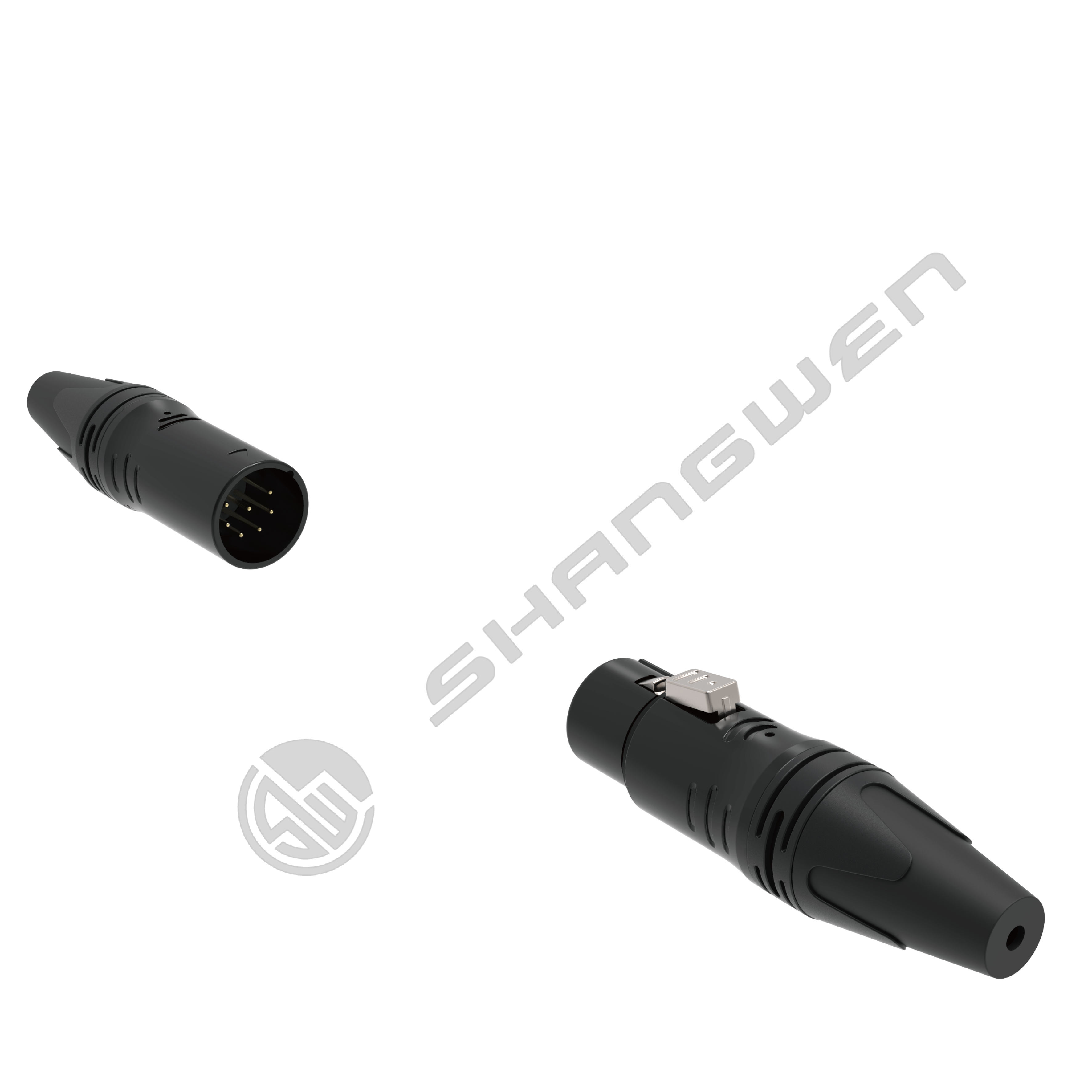

XLR connector-7 pin male plug
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
Model:SWM7X-3TBN-KN (Black)
One hand can operation, push the button to pull it out
The contact pin is gold-plated,the shell plating black
Zinc alloy shell to ensure that it can withstand gravity in any field of use
Protection class IP40
Wire diameter range: 3.5-8mm

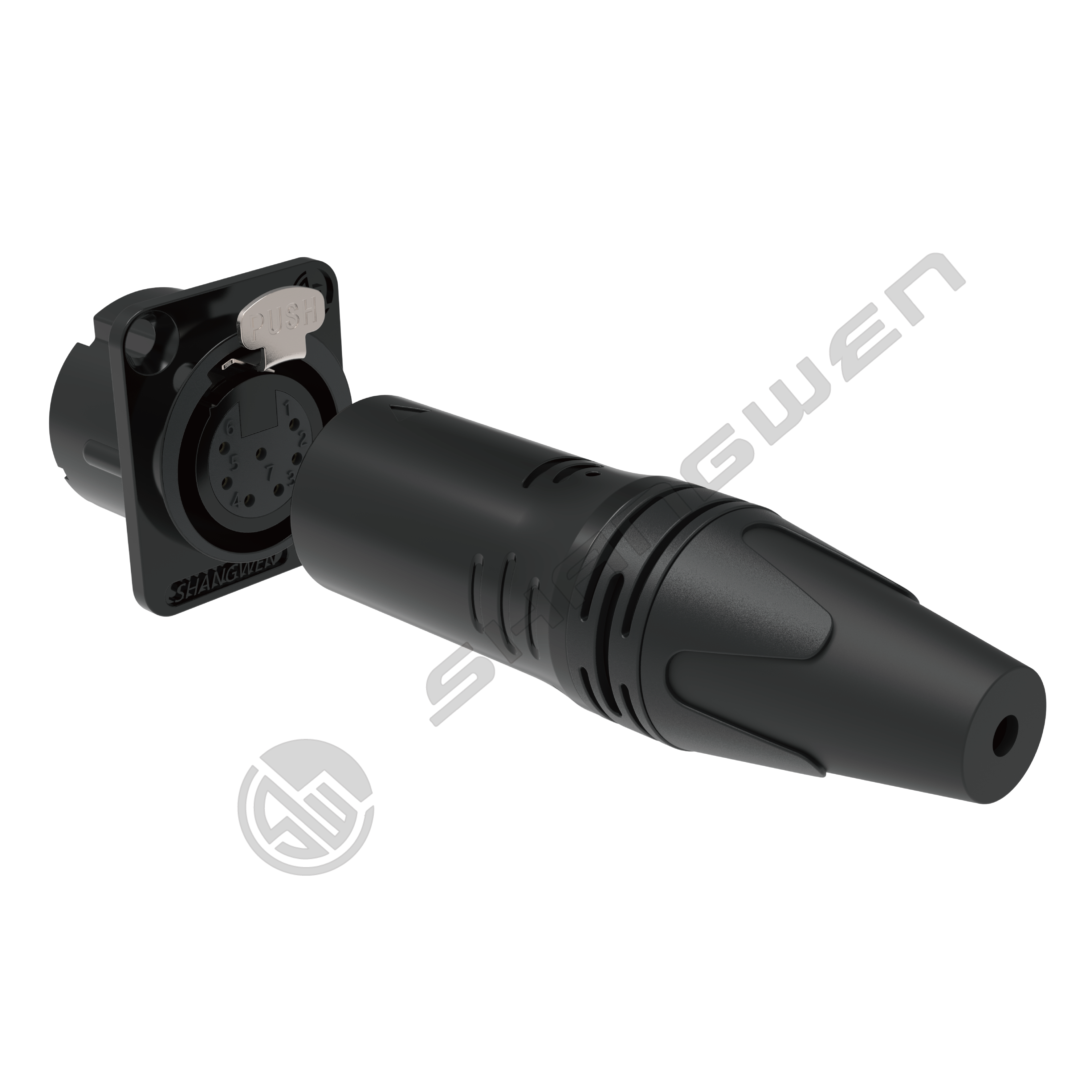

Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
1.Product parameters
Connection Type
XLR
Gender
male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
3.5-8mm
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
>1000 mating cycles
Wire size
Max. 1.5 mm²
Wire size
Max. 16 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
TPU
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr Black
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5.Size reference (unit /mm)
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
6.Assembly reference
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
Application area
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
Company Information
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
Patent & Certification
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
Exhibition activities
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
Packaging reference
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
Payment and logistics
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
FAQ
Black 7-Pin XLR Audio Video Connectors 7-Pole Female Male Plug Socket for Indoor IP40 Protection
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
