Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power

Product Categories
Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

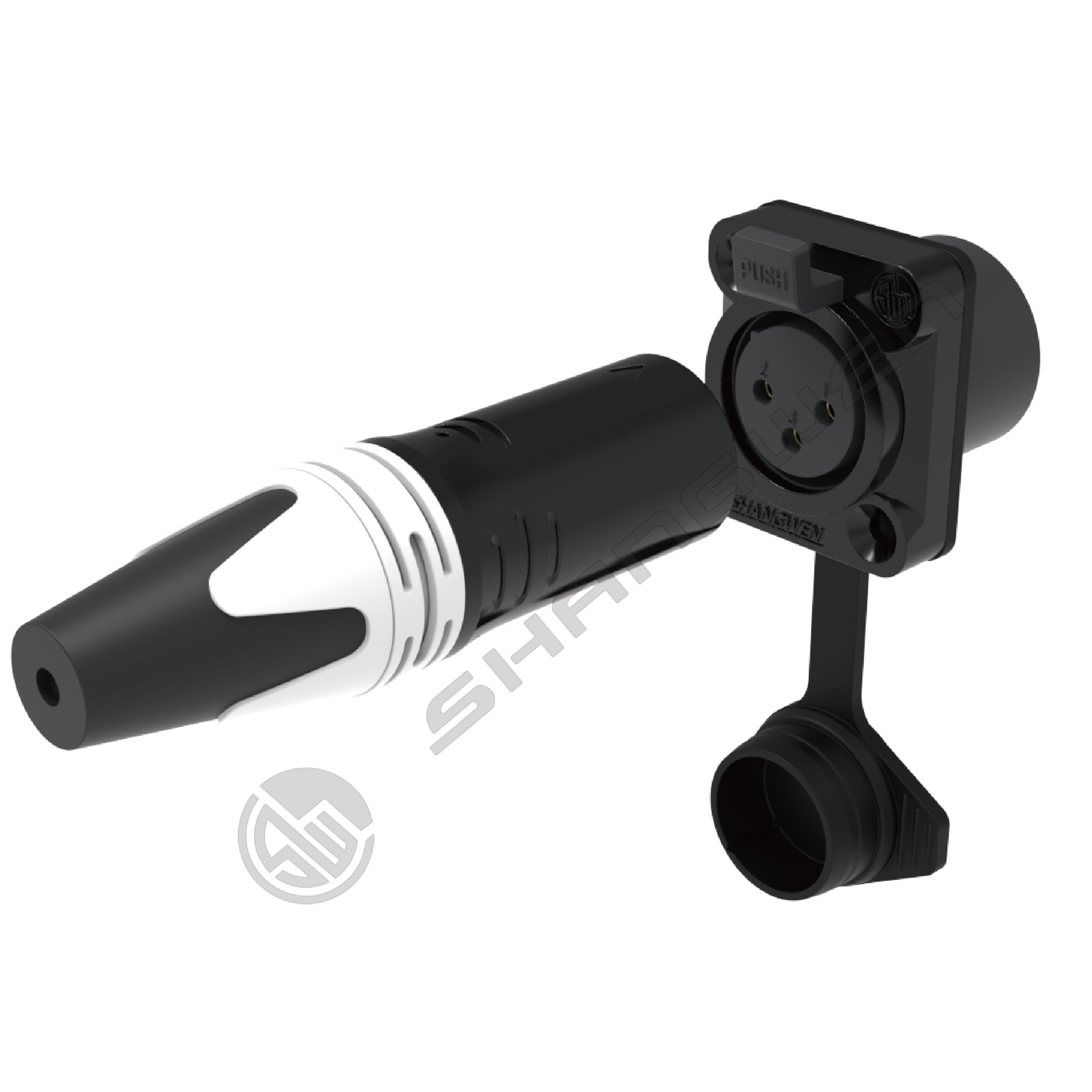

Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power

Contact Material : Copper

Place of Origin : Guangdong, China

IP level : ip65

Brand Name : SHANGWEN

Model Number : SWF3X-3ZBN-KN

Type : XLR connector

Application : Power

Gender : Female

Housing Material : zinc alloy

Industrial electronics : accessories

MOQ : 10 pieces

Price : CN¥10.80/pieces 10-99 pieces

Contact Now

Products Description
Waterproof XLR connector-3 pin male plug
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
Model：SWF3X-3ZBN-KN
☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
3 pin female socket
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
3 pin male socket
1.Product parameters
Connection Type
XLR
Gender
female
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
16A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
5-8mm
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Wire size
Max. 2.5 mm²
Wire size
Max. 14 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
Polyurethan
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
Application area
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
Company Information
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
Patent & Certification
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
Exhibition activities
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
Packaging reference
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
Payment and logistics
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
FAQ
Outdoor Waterproof 3 Pin XLR Plug Female Socket Adapter Alloy Material DMX Panel Mount Audio Wire Connector Copper for Power
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
