Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor

Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor

Rated Current : 50A

Contact Material : Copper

Place of Origin : Guangdong, China

IP level : IP40

Brand Name : SHANGWEN

Model Number : SWF3X-1TBN

Type : XLR

Application : Power, Audio & Video

Gender : Male

Housing Material : zinc alloy, Copper

Industrial electronics : accessories

Pins : 3P

MOQ : 10 pieces

Price : CN¥9.87/pieces 10-99 pieces

Contact Now

Products Description

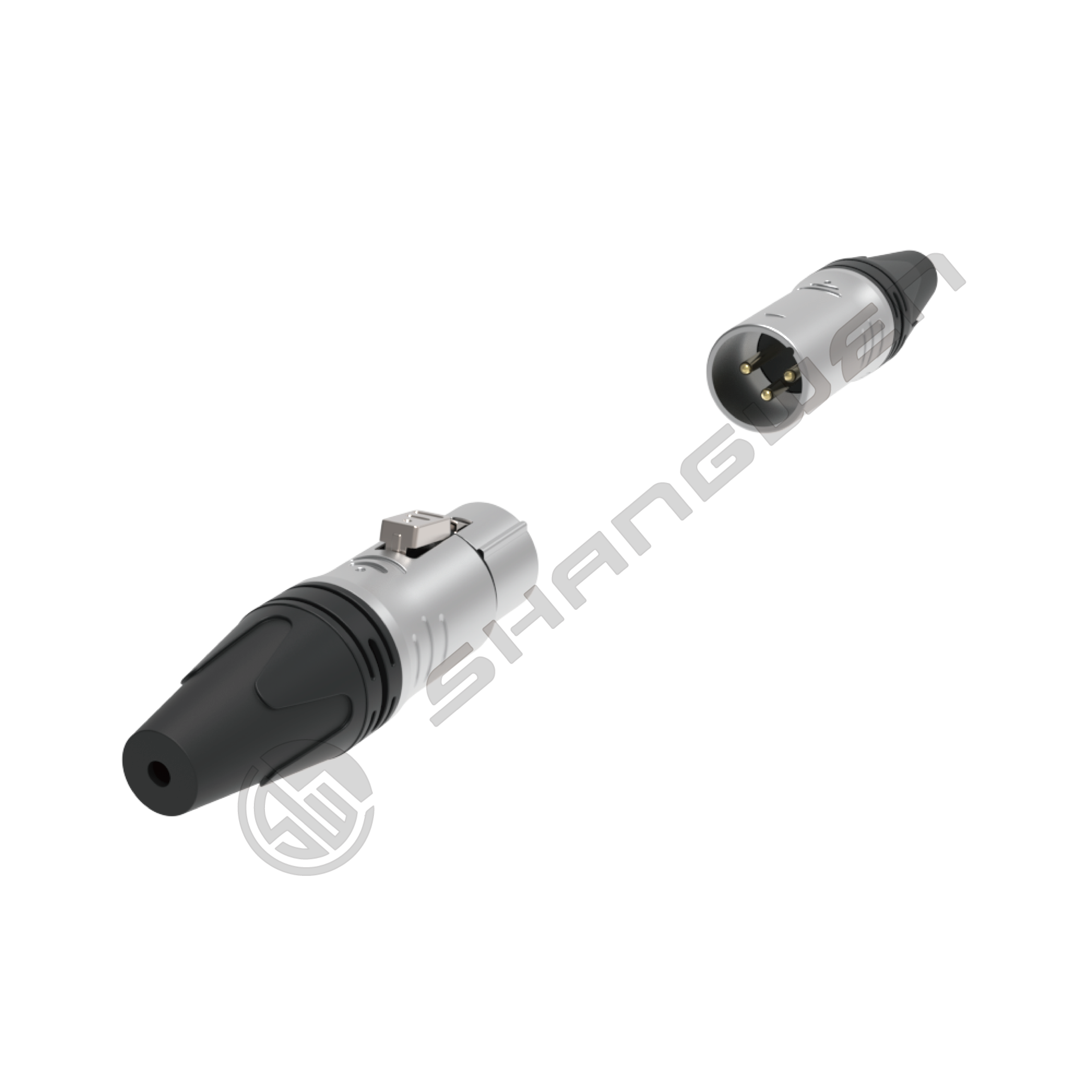

Waterproof XLR connector-3 pin female plug
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Model:SWF3X-2TBN-KN (Black)
SWF3X-2TBN-KN (Silver)
One hand can operation, push the button to pull it out
The contact pin is gold-plated
Zinc alloy shell to ensure that it can withstand gravity in any field of use
Waterproof IP40
Wire diameter range: 5-8mm
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
16A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
5-8mm
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
>1000 mating cycles
Wire size
Max. 2.5 mm²
Wire size
Max. 14 AWG
Locking device
Latch lock
4.Material and environmental parameters

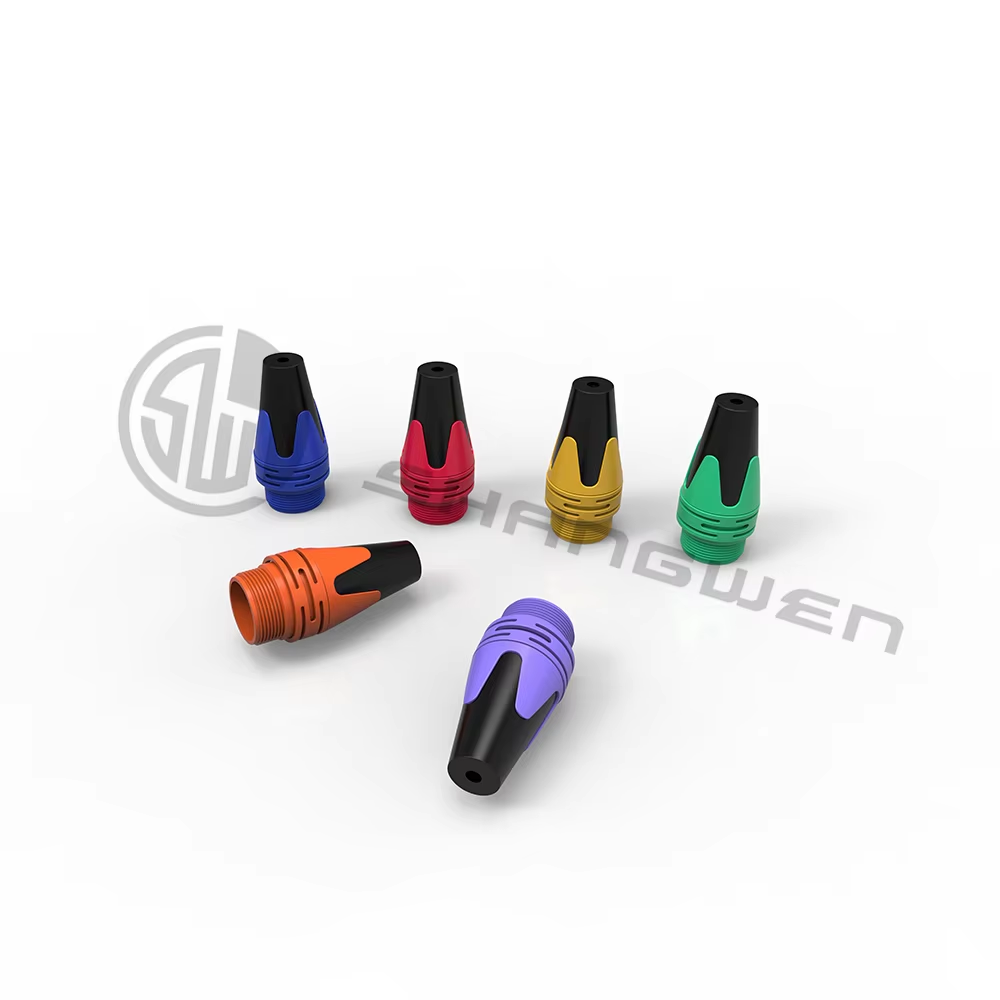

Boot
Polyurethan
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
6.Assembly reference
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Application area
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Company Information
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Patent & Certification
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Exhibition activities
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Packaging reference
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
Payment and logistics
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
FAQ
Custom Logo 3 Pin XLR Male Connector Waterproof DMX Thread Coupling Audio Video Connector Female Socket for Outdoor
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
