Outdoor IP65 Waterproof Panel Mount Thread Ethernet Rj45 Female Connector Horn Signal Right Angle Straight Cat5e Cat PCB RJ45

Name: Outdoor IP65 Waterproof Panel Mount Thread Ethernet Rj45 Female Connector Horn Signal Right Angle Straight Cat5e Cat PCB RJ45
Brand: SHANGWEN
Price: 2.20 USD

China Outdoor IP65 Waterproof Panel Mount Thread Ethernet Rj45 Female Connector Horn Signal Right Angle Straight Cat5e Cat PCB RJ45 factory

Rated Current : 1.5A

Place of Origin : Guangdong, China

IP level : ip65

Brand Name : SHANGWEN

Model Number : SW8FDYR-N

Type : RJ45 socket

Application : Ethernet

Gender : Female

Industrial electronics : accessories

MOQ : 10 pieces

Price : $2.20-3.30 / piece

Contact Now

Products Description

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.

Outdoor IP65 Waterproof Panel Mount Thread Ethernet Rj45 Female Connector Horn Signal Right Angle Straight Cat5e Cat PCB RJ45

Model：SW8FDNR-N

（outdoor use）

*The rear end is 90°8P horn, IP65*

☑Can be compatible with SW8MC-B or any standard RJ45 connector
☑D style with uniform metal flange, standard D mounting size
☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
☑D style, can be mounted from front or rear panel

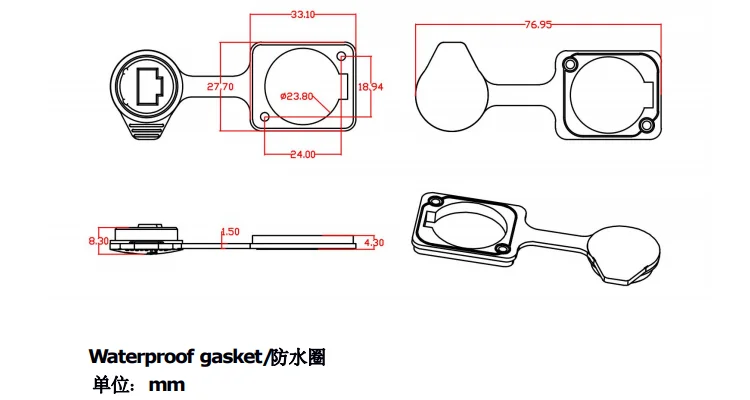

☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached,
which can fully meet the durable and stable signal transmission under harsh outdoor conditions
☑The back-end can be flexibly modified according to actual requirements
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function

1. Electrical parameters

Contact resistance	＜10mΩ
Rated current	1.5 A
Rated voltage	50 V
Insulation resistance	≥0.5GΩ
Dielectric strength	1KV DC
Frequencyrange	1-100 MHz
Transmission performance	CAT 5e

2. Mechanical parameters

Service life	＞1000
Insertion force	≤ 20 N
Locking device	latch lock
Chassis shape	D

3. Material and environmental parameters

Shell	Zinc diecast (ZnAl4Cu1)
Contacts	Bronze
Socket	PBT
Contact surface	Au
Shell surface	Pearl Cr
Temperature range	-30℃to +80℃

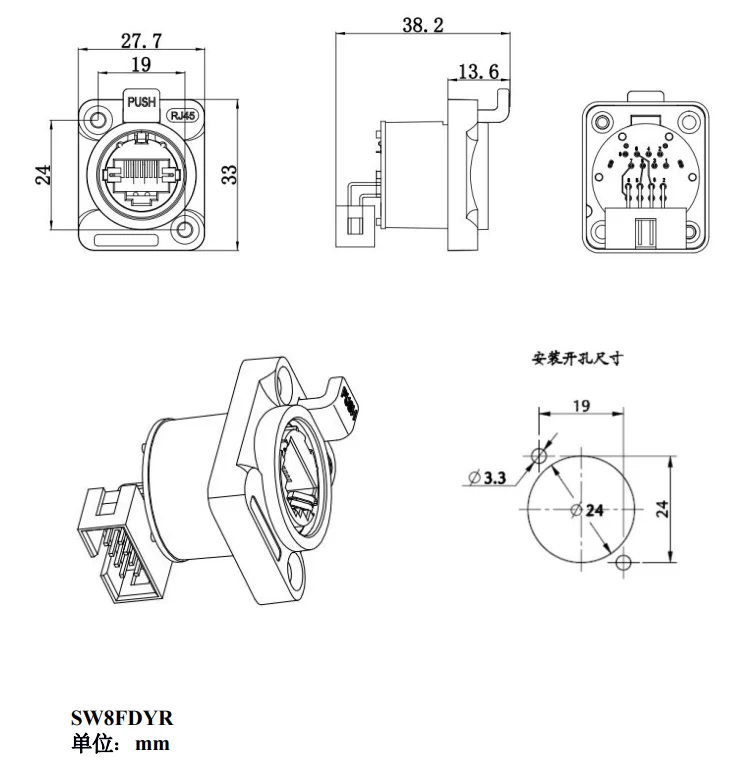

4.Size reference (unit /mm)

5.Internal structure reference

6. Installation instructions with SW8MC-B plugs

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
