Indoor/Outdoor Use 5-7mm Cable Diameter Ethernet Connectors 8 Pin Rj45 Waterproof Female Chassis Connector IP44 Panel Connectors

Name: IndoorOutdoor Use 57mm Cable Diameter Ethernet Connectors 8 Pin Rj45 Waterproof Female Chassis Connector IP44 Panel Connectors
Brand: SHANGWEN
Price: 0.90 USD

China Indoor/Outdoor Use 5-7mm Cable Diameter Ethernet Connectors 8 Pin Rj45 Waterproof Female Chassis Connector IP44 Panel Connectors factory

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW8MC-A-2

Type : RJ45 plug

Application : Ethernet

Gender : Male

Industrial electronics : accessories

MOQ : 10 pieces

Price : $0.90-1.80 / piece

Contact Now

Products Description

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.

Indoor/Outdoor Use 5-7mm Cable Diameter Ethernet Connectors 8 Pin Rj45 Waterproof Female Chassis Connector IP44 Panel Connectors

Model：SW8MC-A-2（indoor use）

☑This RJ45 system is suitable for very demanding environments
☑This cable jacket can be matched with most RJ45
☑Cable jacket does not include crystal head
☑Wire diameter range: 5-7mm
☑Rugged die-cast housing and unique line clamp lock card
☑In many commercial applications, protecting Ethernet connections, this design protects components in RJ45 standard connectors

1. Mechanical parameters

Service life	＞1000 mating cycles
Insertion force	≤20 N
Wiring	5-7mm
Locking device	latch lock

2. Material and environmental parameters

Boot	Polyamide
Shell	Zinc diecast
Shell plating	Black coating
Temperature range	-30℃to +80℃

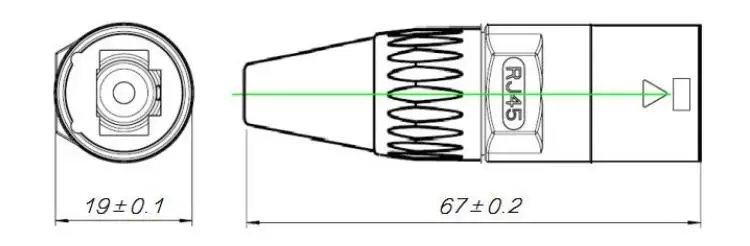

3. Size reference (unit /mm)

4. Internal structure reference

5. Installation instructions with RJ45 socket

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
