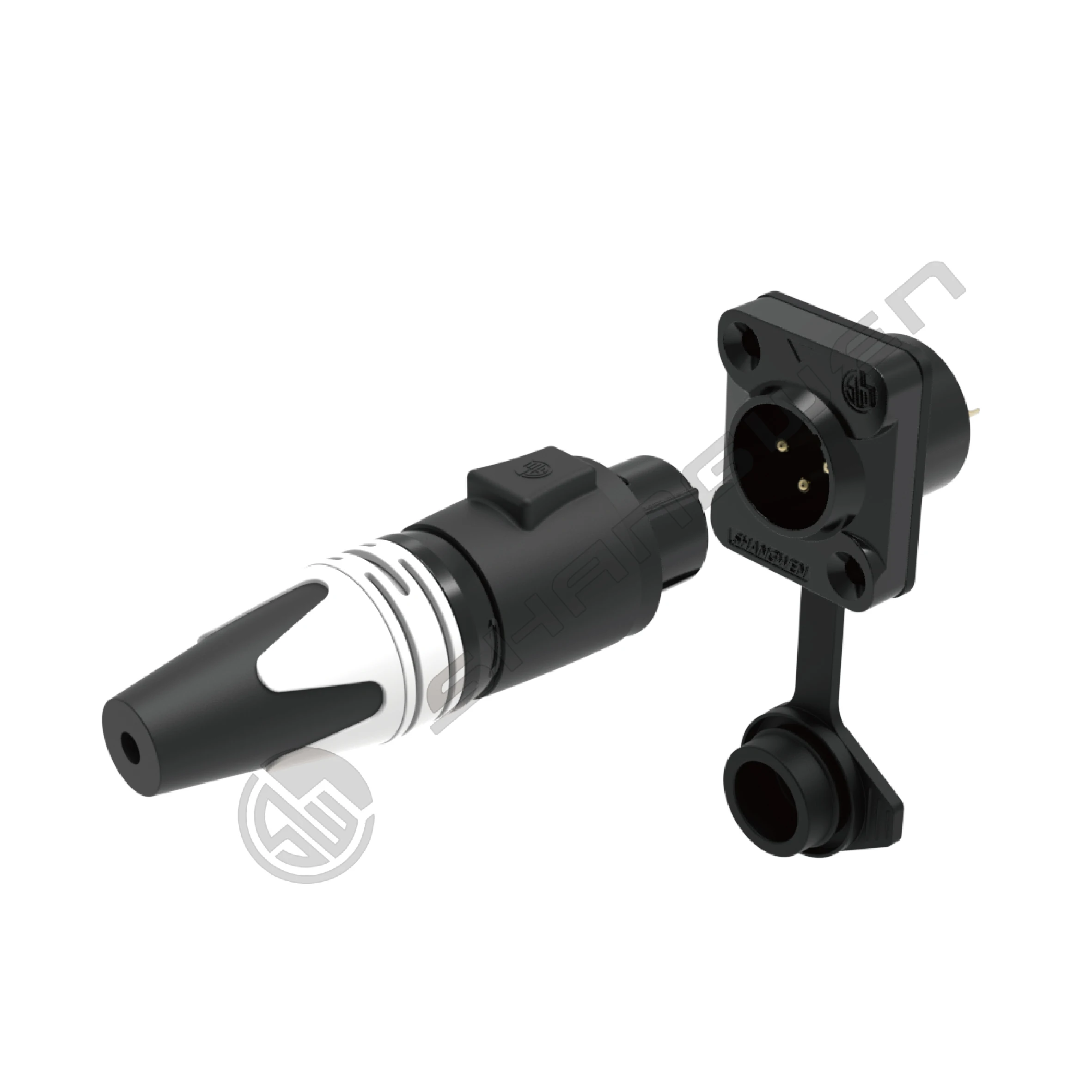

High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin

Application : Power

Contact Material : Copper Alloy

Rated Current : 16 A

Model Number : SWM3X-2ZFS-KN(Sliver),SWM3X-2ZFB-KN(Black)

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Other

Housing Material : Zinc Alloy

IP Level : IP65

Type : XLR connector

Industrial electronics : accessories

MOQ : 10 pieces

Price : $1.14-1.21 / piece

Contact Now

Products Description

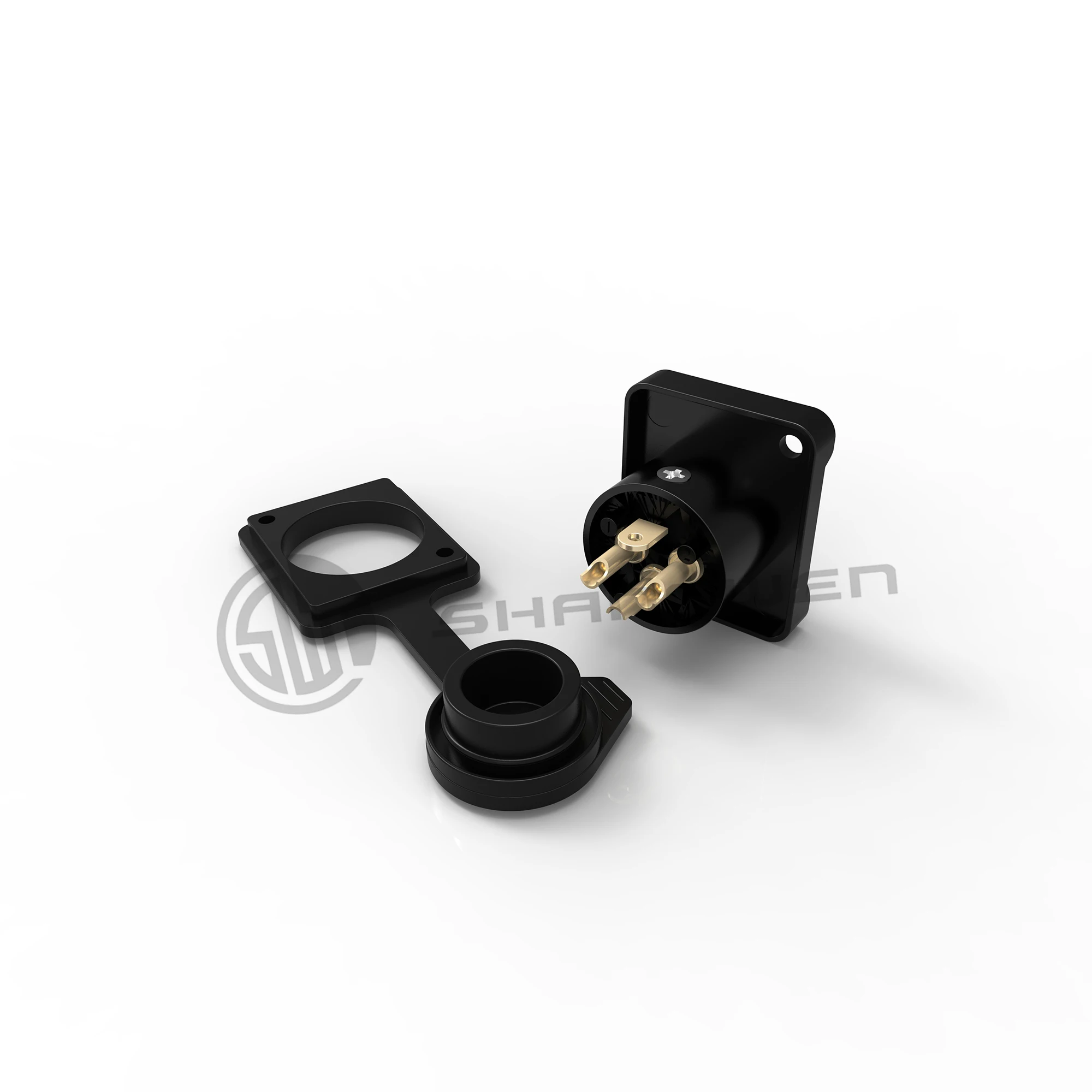

Waterproof XLR connector-3 pin male socket
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
Model：
SWM3X-2ZFS-KN(Sliver)
SWM3X-2ZFB-KN(Black)
☑Sealed rubber jacket is waterproof and dust-proof
☑Standard D mounting dimensions, fully matched to existing installation
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Waterproof IP65
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
16A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃

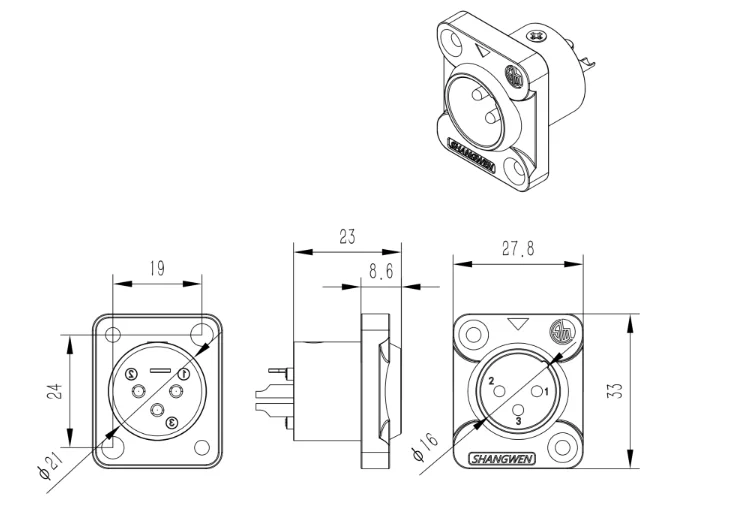

5.Size reference (unit /mm)
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin

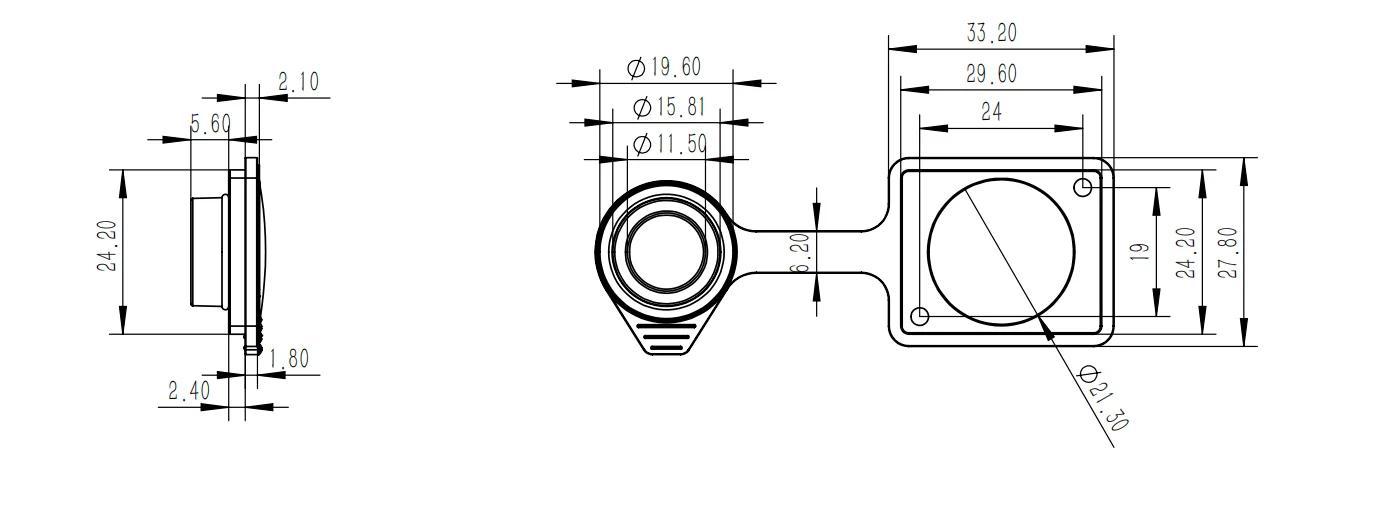

Waterproof rubber(Unit:mm)
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
Application area
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
Company Information
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
Patent & Certification
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
Exhibition activities
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
Packaging reference
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
Payment and logistics
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
FAQ
High Quality Black Outdoor Waterproof Ip65 Male Socket Audio XLR Connector 3 Pin
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
