Outdoor Waterproof Black Silver Shell Audio XLR 5pin Connector High Quality Female Socket

Name: Outdoor Waterproof Black Silver Shell Audio XLR 5pin Connector High Quality Female Socket
Brand: SHANGWEN
Price: 1.36 USD

China Outdoor Waterproof Black Silver Shell Audio XLR 5pin Connector High Quality Female Socket factory

Application : Audio & Video

Contact Material : Copper Alloy

Rated Current : 7.5a

Model Number : SWF5X-2ZFS-KN,SWF5X-2ZFB-KN

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Female

IP Level : IP65

Type : XLR Connector

Industrial electronics : accessories

MOQ : 10 pieces

Price : $1.36-1.43 / piece

Contact Now

Products Description

Waterproof XLR connector-5 pin female socket

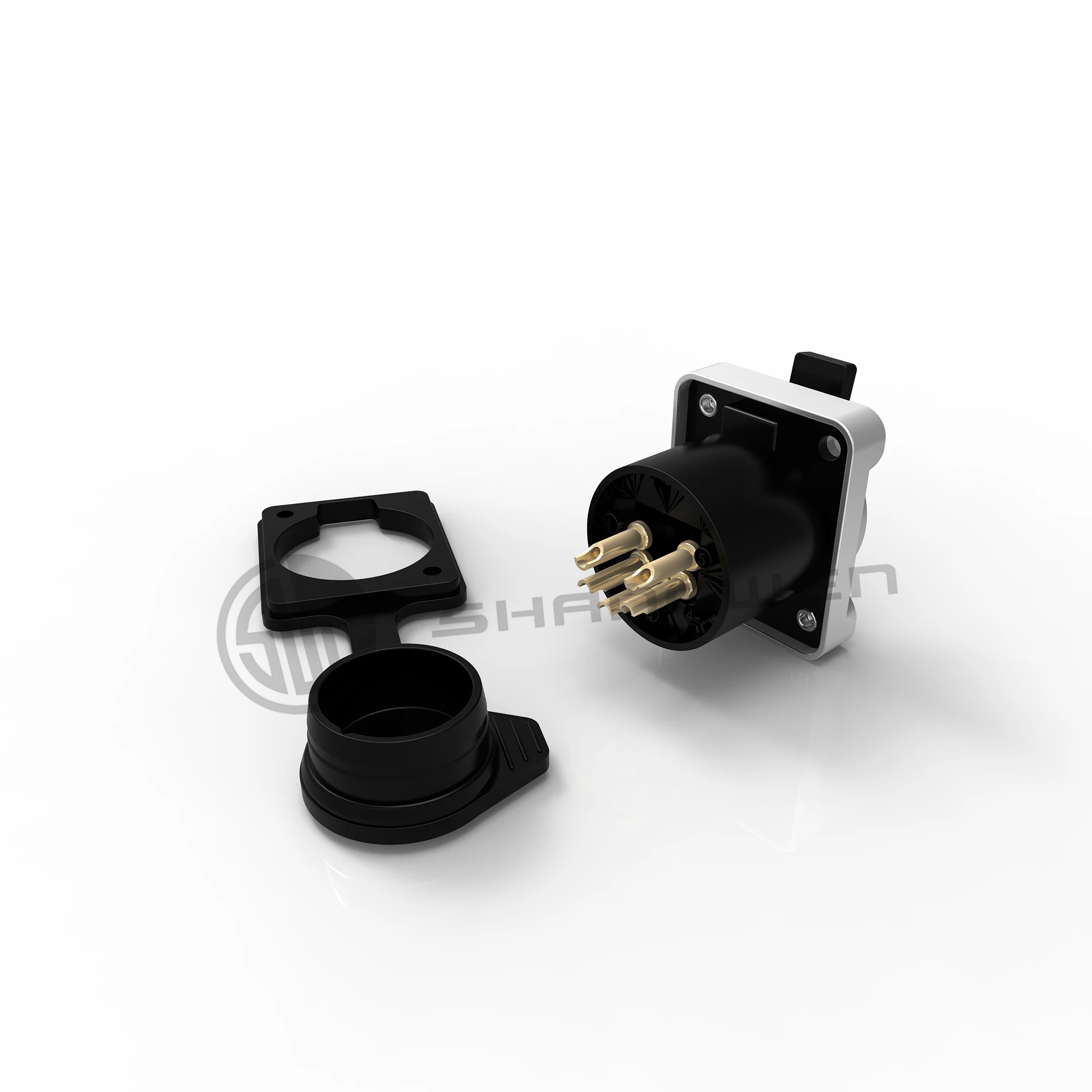

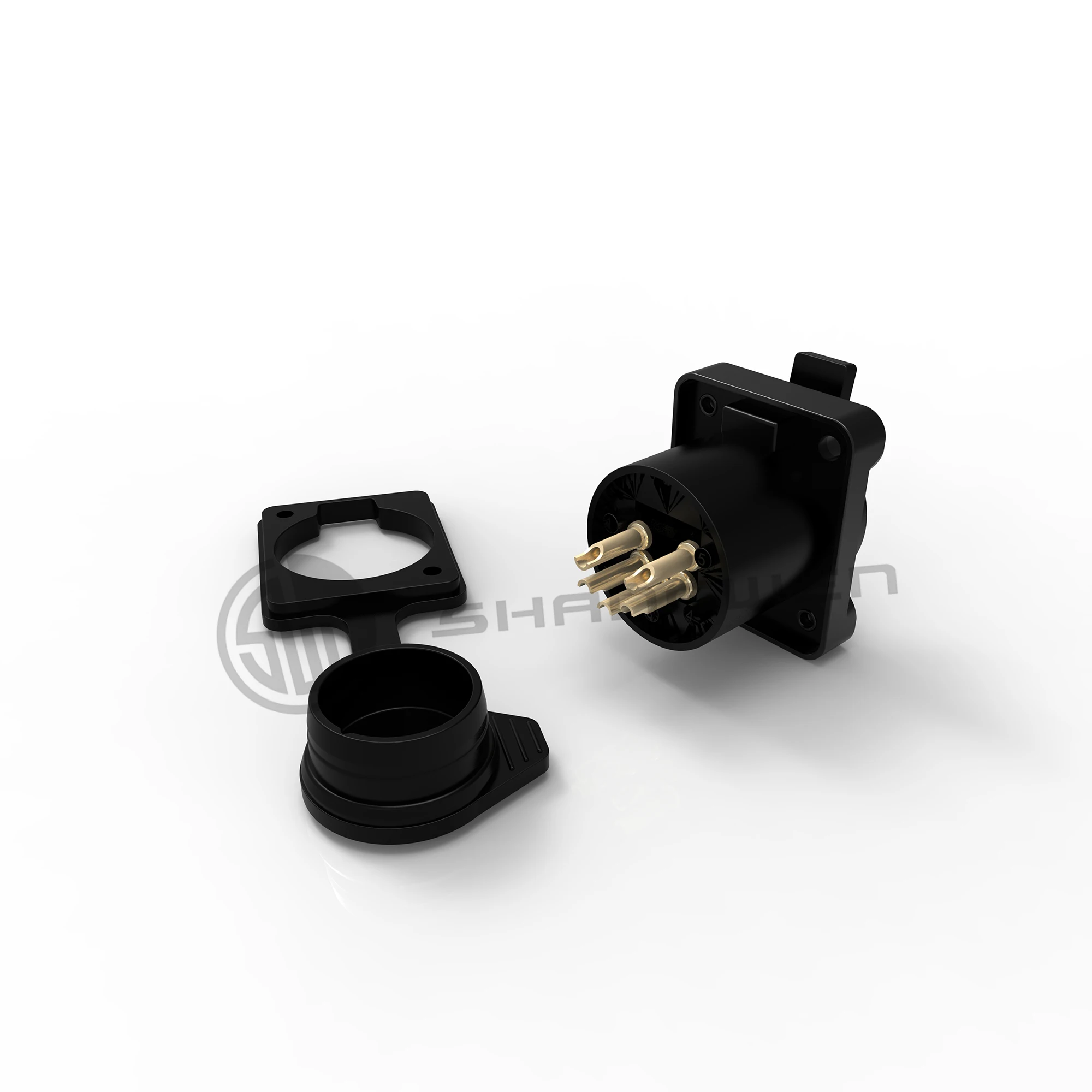

Outdoor Waterproof Black Silver Shell Audio XLR 5pin Connector High Quality Female Socket

Model：

SWM5X-2ZFS-KN（Silver）

SWM5X-2ZFS-KN（Black）

☑Sealed rubber jacket is waterproof and dust-proof
☑Standard D mounting dimensions, fully matched to existing installation
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Waterproof IP65

1.Product parameters

Connection Type	XLR
Gender	Female

2.Electrical parameters

Capacitance between contacts	≤7pF
Contact resistance	≤5mΩ
Dielectric strength	1.5kV DC
Insulation resistance	> 10GΩ (initial)
Rated current per contact	7.5A
Rated voltage	<50V

3.Mechanical parameters

Insertion force	≤ 20N
Withdrawal force	≤ 20N
Service life	＞1000 mating cycles
Chassis shape	D type

4.Material and environmental parameters

Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr
Solder ability	Complies with IEC 68-2-20
Flame-retardant grade	UL 94 HB
Protection class	IP65
Temperature range	-30℃to +80℃

5.Size reference (unit /mm)

Waterproof rubber(Unit:mm)

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
